| Color | Customed Is Posssible |
| Type | Wire Mesh |
| Certification | ISO9001 |
| Condition | New |
| Product Name | Coated Welded Wire Mesh |
| Place of Origin | Hebei, China |
| Wire Diameter | 3mm 4mm or as Your Requirement |
| Size | 76.2mm*12.7mm or as Your Request |
| Type of Weaving | Welding |
| Applications | Wire Fencing and Building Material |
| Transport Package | Tray or as Your Request |
| Specification | 1220*2440mm or as your request |
| Origin | China |
| HS Code | 7314490000 |
| Production Capacity | 3000 Square Meters/Day |

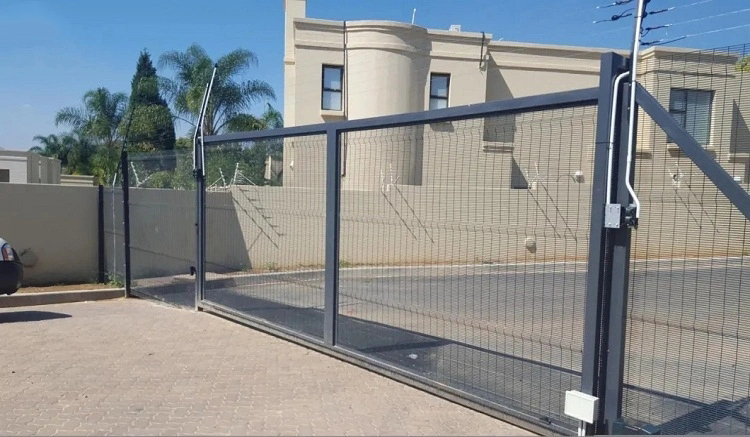

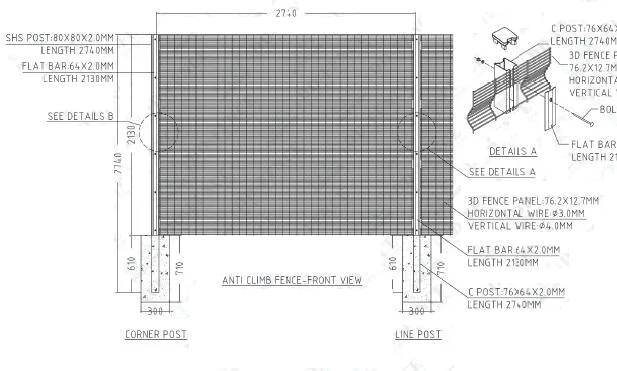

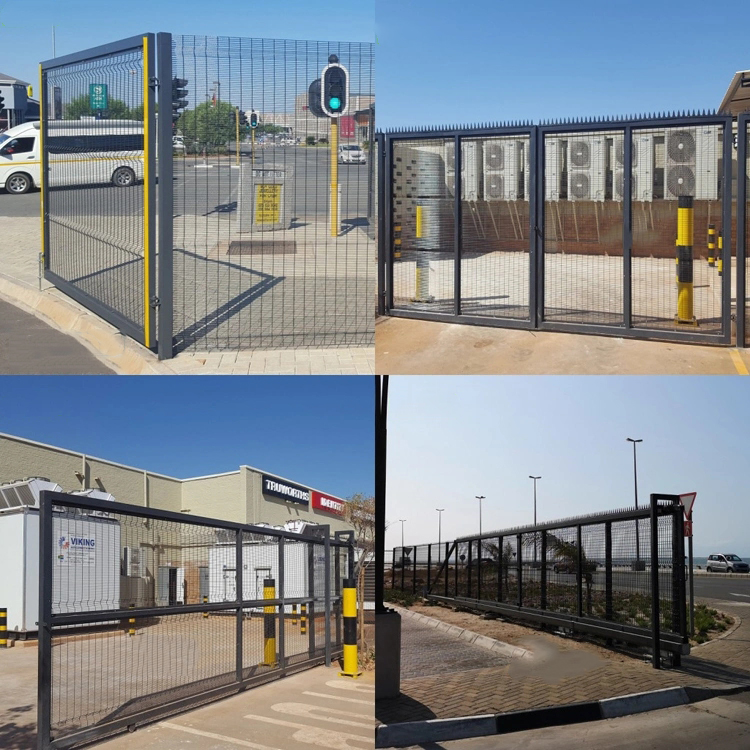

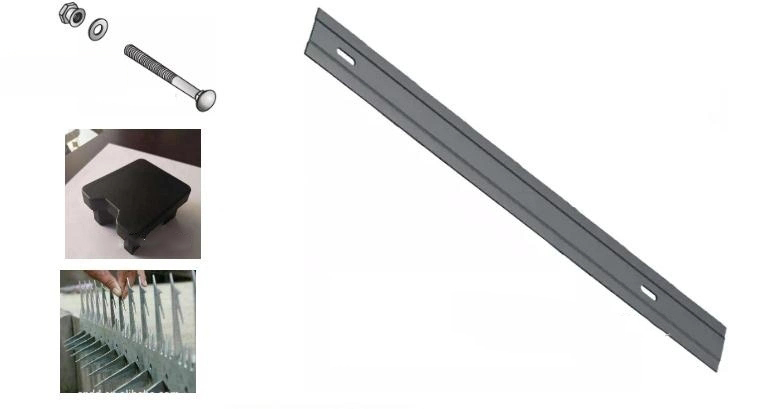

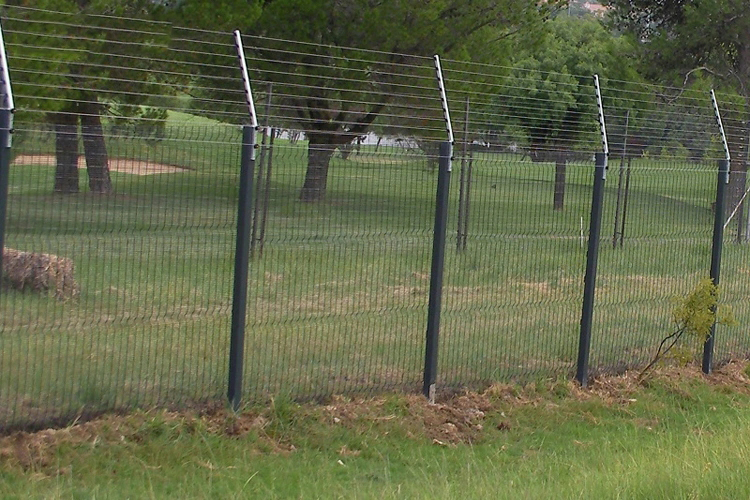

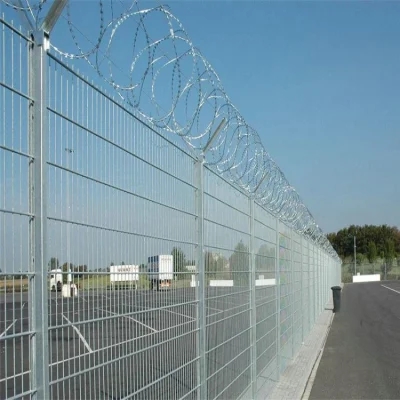

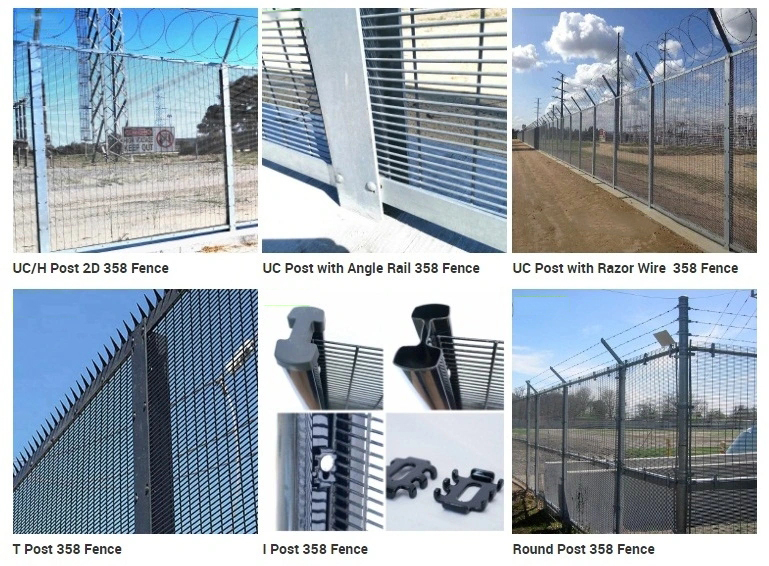

Anti Climb Fence-Secure Wall System The product is our unique design fencing system for security solution. It includes panel mesh ,C post and accessories ,the panel mesh is welded with galvanized wire as per EN10244 and the post is shaped from galvanized coils as per EN10346. The bolts and nuts are stainless steel 304 , panel and post are powder coated with Akzo Nobel- Interpon 600 series powder and pass 500H-1000H salty spray followed by ISO9227. 1, Attractive appearance or see through view 2, Rigid enough with perfect steel structure 3, Simple and easy installation 4, Alternative for both ground bury or flange installation 5, Suitable for flat ground and slope ground installation 6, High security protection and anti climb 7, Anti cutting and durable 8, Reference standard:BS1722-14,ISO1461,EN13438,EN10436Secure wall is suitable for: * Prison * Power stations * Government infrastructure projects * Parks * Factories * Warehouses * Sports facilities * Commercial and industrial applications * Airport * oil-gas pipeline infrastructure * Railway * Military base * Harbor| Code | Panel Style | Panel Size(H*W) | Mesh(mm) | Wire Diameter(mm) | C Post | Extension |
| 1111830 | 3D | 1830*2740 | 76.2*12.7 | 3+4mm | 76*64 | wall spike,barbed wire,electric fence |
| 1112130 | 3D | 2130*2740 | 76.2*12.7 | 3+4mm | 76*64 | wall spike,barbed wire,electric fence |
| 1112440 | 3D | 2440*2130 | 76.2*12.7 | 3+4mm | 76*64 | wall spike,barbed wire,electric fence |
| 1112740 | 3D | 2740*2130 | 76.2*12.7 | 3+4mm | 76*64 | wall spike,barbed wire,electric fence |
| 1121830 | 2D | 1830*2440 | 76.2*12.7 | 4+4mm | 76*64 | wall spike,barbed wire,electric fence |
| 1122130 | 2D | 2130*2440 | 76.2*12.7 | 4+4mm | 76*64 | wall spike,barbed wire,electric fence |
| 1122440 | 2D | 2440*2130 | 76.2*12.7 | 4+4mm | 76*64 | wall spike,barbed wire,electric fence |
| 1122740 | 2D | 2740*2130 | 76.2*12.7 | 4+4mm | 76*64 | wall spike,barbed wire,electric fence |
Fence panel:

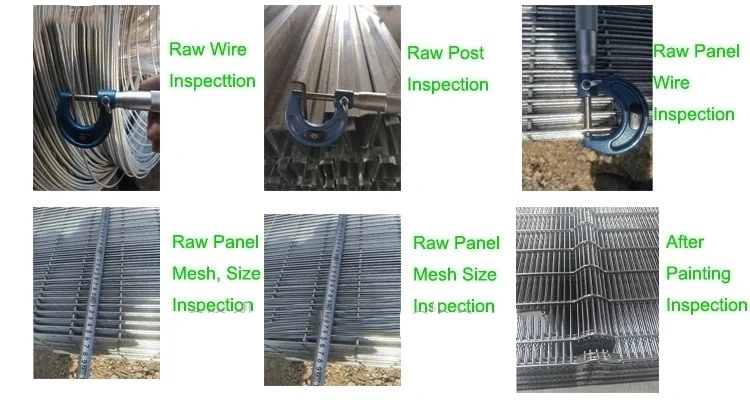

The fence panel is welded by our advanced automatic machine as per BS1722-14 to give the fence high welded shear strength and more rigid after installation. wire diameter comes with 3mm,4mm,5.6mm, mesh size in 76.2*12.7mm or 75x12.5mm. The surface treatment in pre galvanized/HDG+polyester powder coating as per EN10245/EN10348, standard colors: RAL6005 Green,RAL9005 Black,RAL7040 Grey,RAL7016 Grey,RAL5002 Blue,other colors on request.

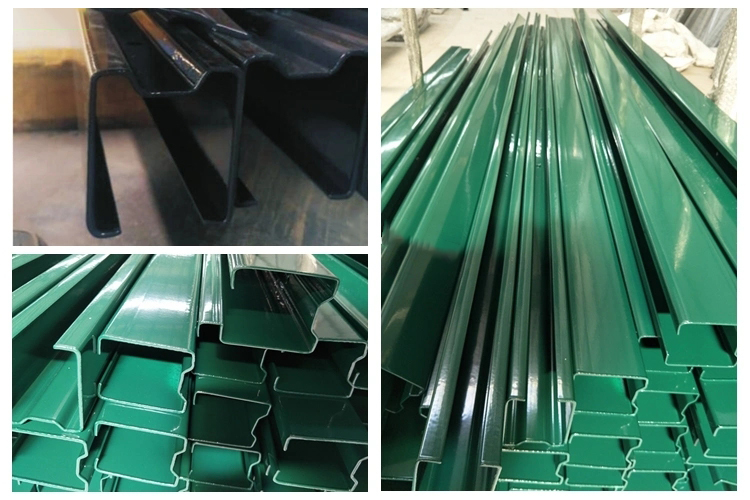

Post: The C post is our unique design on fence market,it's shaped from galvanized coils as per EN10346.the post is rigid structure and attractive appearance. The surface treatment in pre galvanized/HDG+polyester powder coating as per EN13438, standard colors: RAL6005 Green,RAL9005 Black,RAL7040 Grey,RAL7016 Grey,RAL5002 Blue,other colors on request.
