Specifications | Weight | Yarn (tex) | Mesh Size (mm) | Density Count/25mm | Tensile Strength x 20cm | ||||
| (g/m2) | Warp | Weft | Warp | Weft | Warp | Weft | Warp | Weft |
| 55 | 30 x 2 | 45 | 2.5 | 2.5 | 10 | 10 | 450 | 450 |
| 55 | 30 x 2 | 67 | 2.82 | 2.82 | 9 | 9 | 150 | 450 |
| 60 | 30 x 2 | 67 | 2.5 | 2.5 | 10 | 10 | 500 | 650 |
| 65 | 30 x 2 | 100 | 2.82 | 2.82 | 9 | 9 | 450 | 650 |
| 70 | 45 x 2 | 200 | 5 | 5 | 5 | 5 | 550 | 850 |
| 75 | 45 x 2 | 200 | 4 | 5 | 6 | 5 | 600 | 650 |
| 80 | 67 x 2 | 200 | 5 | 5 | 5 | 5 | 700 | 850 |
| 90 | 67 x 2 | 250 | 5 | 5 | 5 | 5 | 700 | 1050 |
| 100 | 67 x 2 | 250 | 4 | 5 | 6 | 5 | 850 | 1000 |
| 110 | 100 x 2 | 250 | 5 | 5 | 5 | 5 | 800 | 1050 |
| 120 | 100 x 2 | 250 | 4 | 5 | 6 | 5 | 1000 | 1300 |
| 125 | 134 x 2 | 250 | 5 | 5 | 5 | 5 | 1200 | 1300 |
| 135 | 134 x 2 | 300 | 5 | 5 | 5 | 5 | 1300 | 1400 |
| 140 | 134 x 2 | 250 | 4 | 5 | 6 | 5 | 1300 | 1350 |
| 145 | 250 x 2 | 700 | 10 | 10 | 2.5 | 2.5 | 1250 | 1700 |
| 150 | 134 x 2 | 300 | 4 | 5 | 6 | 5 | 1300 | 1300 |
| 160 | 134 x 2 | 400 | 5 | 5 | 5 | 5 | 1450 | 1600 |
| 165 | 134 x 2 | 350 | 4 | 5 | 6 | 6 | 1300 | 1300 |

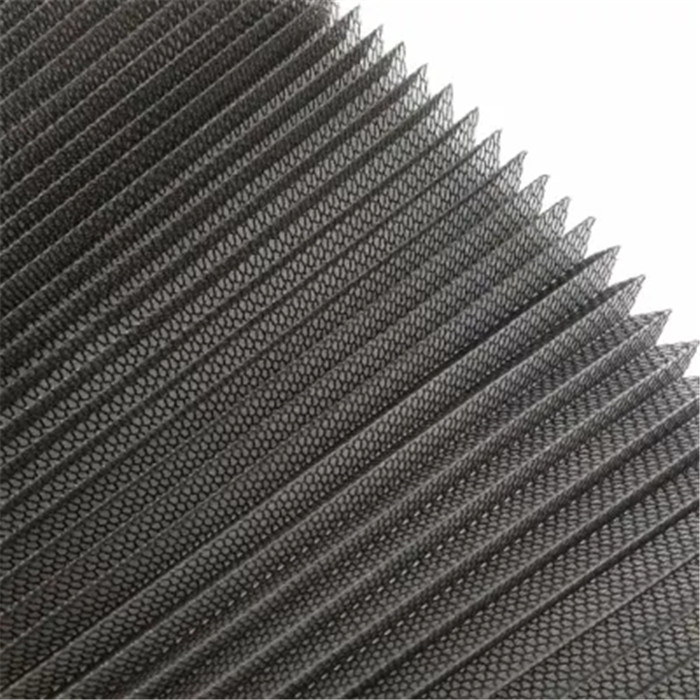

The product is a flat net made by introducing the weaving technology of plastic-coated insect-proof net of single fiberglass and using the vinyl resin of single fiberglass.The product is flame-retardant, corrosion-resistant, strong tensile force, invariable, easy to clean, anti-aging, breathable,good light permeability, long service life and many other excellent characteristics, its color is the international popular gray, black, can make thevisual sense more comfortable and natural,Its appearance elegant and appearance. It is widle uesd in industry civil construction animal husbandry park forestry, agriculture and other ventilation pest control facilities Fiberglass mesh is made of glass fiber woven fabric and coated with alkali resistant emulsion. The product has the characteristics of stable structure, high strength, good alkali resistance, corrosion resistance, crack resistance, etc. with the best reforcement effect, simple construction and easy operation. It is a new type of building material for external wall insulation enginnering, which is mainly used for strengthening and crack preventation of internal and external surfaces of cement,stucco, eifs systems, gypsum, wall, buidings, wooden floors, stadium rubber ground and other structures. In north America market, the standard fiberglass mesh is 4.5oz, the mesh should be very soft, easy to operation and not harm the hands. The standard roll size is 38" x 150ft and 48" x 150ft. The standard color is white, blue and yellow. For some villa project, some clients will choose 15oz heavy duty mesh. 4.5oz 38" x 150ft, 48"x 150ft, 15oz 38"x 75ft
| Model NO. | WS-003 |
| Mesh | 18X16,18X14,18X18 |
| Width | 60-280cm |
| Length | 90m,50m,100m |
| Transport Package | Carton |
| Origin | Hebei, China |
| HS Code | 3925300000 |
| Production Capacity | 1000 Sqm/Day |
